API 685 Compliance
Designed specifically for oil, gas, and petrochemical refinery environments.
Mechanical

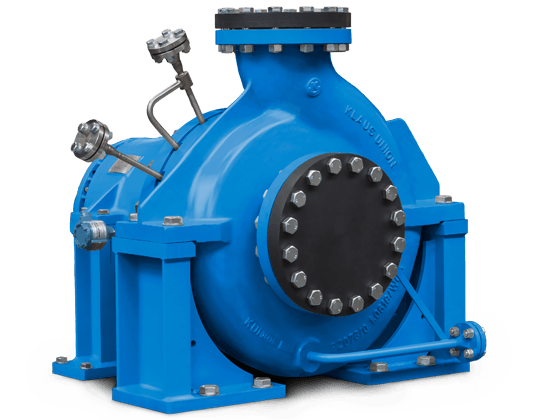

Klaus Union SLM AP API 685 Magnetic Drive Pump
Klaus Union
Heavy-duty API 685 compliant magnetic drive pump for petroleum and refining applications.
3,500m³/h
MAX FLOW RATE220m L.C.
MAX DELIVERY HEAD-200 to +550°C
TEMPERATURE RANGEPN 400
PRESSURE RATINGRefinery Class
API 685 Sealless Safety
Heavy-duty magnetic drive pump for petroleum and refining applications requiring absolute leak containment.
B
Zero Emissions
Hermetic magnetic coupling eliminates toxic hydrocarbon leakage.
C
Double Containment
Available with secondary containment shell systems for critical process security.
D
High Piping Loads
Heavy-wall casing design handles extreme nozzle loads common in refinery piping.
Technical Data
Operational Matrix
Design Standards
API 685
Max Flow Rate
3,500 m³/h
Max Delivery Head
220 m L.C.
Temperature Range
-200 °C to +550 °C
Pressure Rating
Max. PN 400
Materials
Stainless Steel, Duplex, Hastelloy®, Titanium
Standards
DIN EN ISO 15783, API 685
Service Conditions
Industrial Applications
APP-01
Volatile Hydrocarbons
Leak-free pumping of light hydrocarbons and volatile fuels.
Mechanical
APP-02
Hot Oil Recirculation
High-temperature oil circulation up to +550 °C.
Mechanical
APP-03
Toxic Chemical Process
Absolute containment of hazardous chemicals.
Mechanical
Need a Klaus Union SLM AP Pump?
Contact our API 685 specialists to select the correct containment and bearing monitor configurations.
