A
Multi-Stage Power
Generates high discharge heads up to 2,200 meters through multiple series impellers.
Mechanical

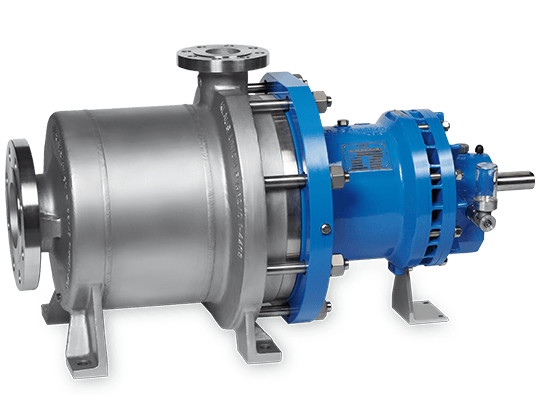

Klaus Union SLM GV Multi-Stage Magnetic Drive Centrifugal Pump
Klaus Union
High-head multi-stage magnetic drive pump based on DIN ISO 15783 and API 685.
300m³/h
MAX FLOW RATE2,200m L.C.
MAX DELIVERY HEAD-120 to +350°C
TEMPERATURE RANGEPN 250
PRESSURE RATINGHigh Pressure
Multi-Stage Sealless Design
High-head multi-stage magnetic drive pump based on DIN ISO 15783 and API 685 for high-pressure injection.
B
Axial Thrust Balance
Internal hydraulic balancing system minimizes thrust bearing loads, extending runtime.
C
Sealless Safety
Magnetically coupled containment shell prevents toxic chemical leaks under high pressures.
D
API 685 Version
Available in configurations meeting stringent oil and gas safety requirements.
Technical Data
Operational Matrix
Design Standards
DIN EN ISO 15783 / API 685
Max Flow Rate
300 m³/h
Max Delivery Head
2,200 m L.C.
Temperature Range
-120 °C to +350 °C
Pressure Rating
Max. PN 250
Materials
Stainless Steel, Duplex, Hastelloy®, Titanium
Standards
DIN EN ISO 15783, API 685
Service Conditions
Industrial Applications
APP-01
Boiler Feedwater
Reliable feed injection into high-pressure boilers without seal wear.
Mechanical
APP-02
Chemical Injection
High-pressure dosing of toxic or aggressive chemicals.
Mechanical
APP-03
Hydrocarbon Injection
High-head liquid gas and hydrocarbon process feeds.
Mechanical
Need a Klaus Union SLM GV Pump?
Discuss your high-head process injection requirements with our technical sales engineers.
