A
Zero Leakage
Sealless design removes mechanical shaft seals, preventing any chemical emissions.
Mechanical

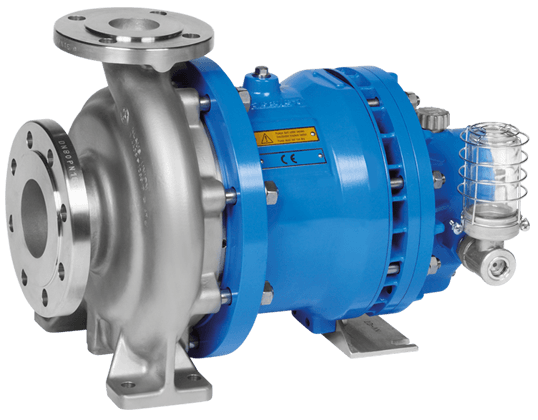

Klaus Union SLM NV ISO Sealless Magnetic Drive Pump
Klaus Union
DIN EN ISO 2858 / 15783 magnetic drive pump for leak-free handling of hazardous chemicals.
3,500m³/h
MAX FLOW RATE220m L.C.
MAX DELIVERY HEAD-200 to +550°C
TEMPERATURE RANGEPN 400
PRESSURE RATINGStandard Process
ISO Standard Sealless Pump
DIN EN ISO 2858 / 15783 magnetic drive pump for leak-free, safe handling of hazardous chemicals.
B
Static Containment
High-strength containment shell provides a pressure barrier.
C
Product Lubricated Bearings
High-purity silicon carbide journal bearings are lubricated by the pumped chemical, ensuring long life.
D
ISO Standardized
Dimensional interchangeability with standard DIN EN ISO 2858 pumps.
Technical Data
Operational Matrix
Design Standards
DIN EN ISO 2858 / 15783
Max Flow Rate
3,500 m³/h
Max Delivery Head
220 m L.C.
Temperature Range
-200 °C to +550 °C
Pressure Rating
Max. PN 400
Materials
Stainless Steel, Duplex, Hastelloy®, Titanium
Standards
DIN EN ISO 15783, API 685
Service Conditions
Industrial Applications
APP-01
Hazardous Chemicals
Safe transfer of acids, alkalis, and toxic process fluids.
Mechanical
APP-02
Organic Solvents
Emission-free storage tank transfer of highly flammable solvents.
Mechanical
APP-03
Toxic Dosing Loops
Continuous inline feed of dangerous chemical agents.
Mechanical
Need a Klaus Union SLM NV Pump?
Select the premier standard for chemical process safety. Contact us for compatibility assessments.
