A
Submerging Depth
Column lengths up to 6,000 mm allow drainage of deep chemical storage tanks.
Mechanical

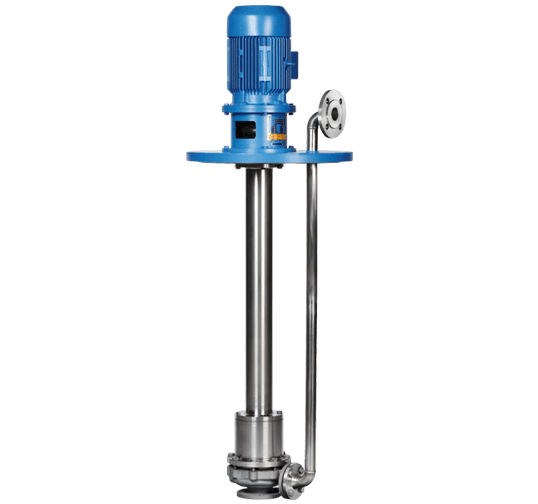

Klaus Union SLM NVT Submerged Sump Pump
Klaus Union
Submerged vertical sump pump with sealless magnet drive, suitable for deep tanks.
3,500m³/h
MAX FLOW RATE220m L.C.
MAX DELIVERY HEAD6,000mm
MAX SUBMERGING DEPTH-40 to +200°C
TEMPERATURE RANGESump Drainage
Submerged Vertical Sealless Pump
Submerged vertical sump pump with sealless magnet drive, suitable for deep tanks.
B
Sealless Top
Magnetic drive containment replaces standard packing glands, removing leak paths.
C
Robust Shaft Guides
Intermediate column shaft guide bearings are product-lubricated.
D
No Wetted Seals
Eliminates wetted mechanical seals inside the tank, drastically reducing maintenance.
Technical Data
Operational Matrix
Design Standards
DIN EN ISO 2858 / DIN EN ISO 15783
Max Flow Rate
3,500 m³/h
Max Delivery Head
220 m L.C.
Temperature Range
-40 °C to +200 °C
Pressure Rating
Max. PN 63
Submerging Depth
Max. 6,000 mm
Materials
Stainless Steel, Duplex, Hastelloy®, Titanium
Standards
DIN EN ISO 15783, API 685
Service Conditions
Industrial Applications
APP-01
Deep Chemical Tanks
Emptying hazardous liquids from deep vertical storage vessels.
Mechanical
APP-02
Underground Drainage
Safe drainage of toxic run-off and process wastewater sumps.
Mechanical
APP-03
Refinery Collection Pits
Emptying oil sludge and drain pits with absolute containment.
Mechanical
Need a Klaus Union SLM NVT Sump Pump?
Specify your tank depth and wetted materials to get a custom engineered vertical column pump.
