A
Dry Self-Priming
Excellent gas-handling capability, allowing the pump to self-prime from dry suction lines.
Mechanical

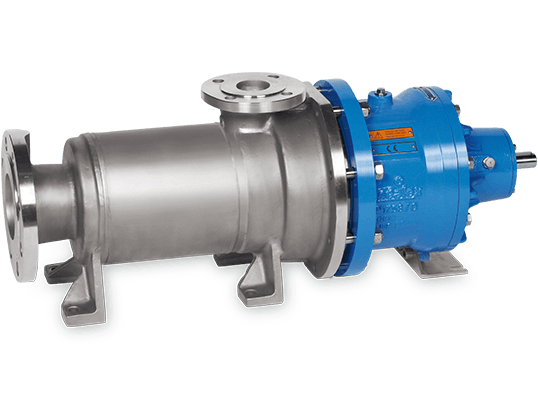

Klaus Union SLM SV Side Channel Magnetic Drive Pump
Klaus Union
Self-priming multi-stage side channel pump with magnet drive for low flow and high head applications.
42m³/h
MAX FLOW RATE470m L.C.
MAX DELIVERY HEAD-120 to +250°C
TEMPERATURE RANGEPN 400
PRESSURE RATINGSelf-Priming
Side Channel Sealless Pump
Self-priming multi-stage side channel pump with magnet drive for low flow and high head applications.
B
High Pressure
Generates substantial discharge heads with lower capacities compared to centrifugal pumps.
C
Zero VOC Emissions
Static containment shell prevents volatile organic compound (VOC) emissions.
D
Gas Entrainment
Tolerates high gas fractions, preventing vapor locks when pumping volatile fluids.
Technical Data
Operational Matrix
Design Standards
DIN EN ISO 15783
Max Flow Rate
42 m³/h
Max Delivery Head
470 m L.C.
Temperature Range
-120°C to +250 °C
Pressure Rating
Max. PN 400
Materials
Stainless Steel, Duplex, Hastelloy®, Titanium
Standards
DIN EN ISO 15783, API 685
Service Conditions
Industrial Applications
APP-01
LPG Cylinder Loading
Safe transfer of liquefied petroleum gas and pressurized hydrocarbons.
Mechanical
APP-02
Condensate Extraction
Pumping hot condensate under high vacuum conditions.
Mechanical
APP-03
Volatile Solvents
Safe handling of solvents near their boiling point.
Mechanical
Need a Klaus Union SLM SV Pump?
Ideal for low-flow, high-head gas mixtures. Contact us for application sizing.
