A
Heavy-Duty Casing
Fully metallic chambered casing allows operation in outdoor installations and high piping loads.
Mechanical

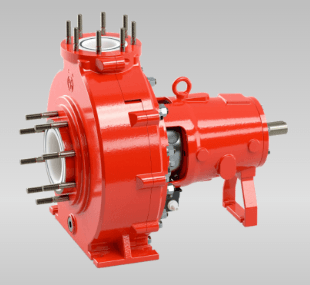

STÜBBE X-CLASS Standardized Chemical Pump (DIN EN ISO 2858)
STUBBE
Heavy-duty standardized chemical pump made of PE-UHMW, PVDF, or PFA with fully metallic chambered casing for harsh installations.
Up to 1,100m³/h
MAX FLOW RATEUp to 120m
MAX HEADUp to 250kW
MOTOR POWERPE/PVDF/PFA
LINING MATERIALSWhy Choose Us
Engineering Advantages
Heavy-duty standardized chemical pump made of PE-UHMW, PVDF, or PFA with fully metallic chambered casing.
B
Standard Design
Complies fully with DIN EN ISO 2858 standardized dimensions for easy replacement.
C
Premium Thermoplastics
Lined with high-resistance plastics like PE-UHMW, PVDF, and PFA for chemical compatibility.
D
Modular Flexibility
An extremely wide modular system with a maximum variety of variants to fit specific process requirements.
Technical Data
Operational Matrix
Standards
DIN EN ISO 2858
Nominal Size DN
25 - 200
Max Flow Rate Q
Up to 1,100 m³/h
Max Head H
Up to 120 m
Motor Power
Up to 250 kW
Materials
PE-UHMW, PVDF, PFA
Connections
Flange DIN / ANSI
Service Conditions
Industrial Applications
APP-01
Chemical Processing
Heavy-duty transport of corrosive process fluids in refineries and plants.
Mechanical
APP-02
Surface Technology
Recirculating aggressive pickling and plating acids.
Mechanical
APP-03
Environmental Engineering
Pumping toxic waste streams and exhaust air scrubbers.
Mechanical
Need a STÜBBE X-CLASS Pump?
Our engineering team will help you select the right thermoplastic linings and shaft seals.
